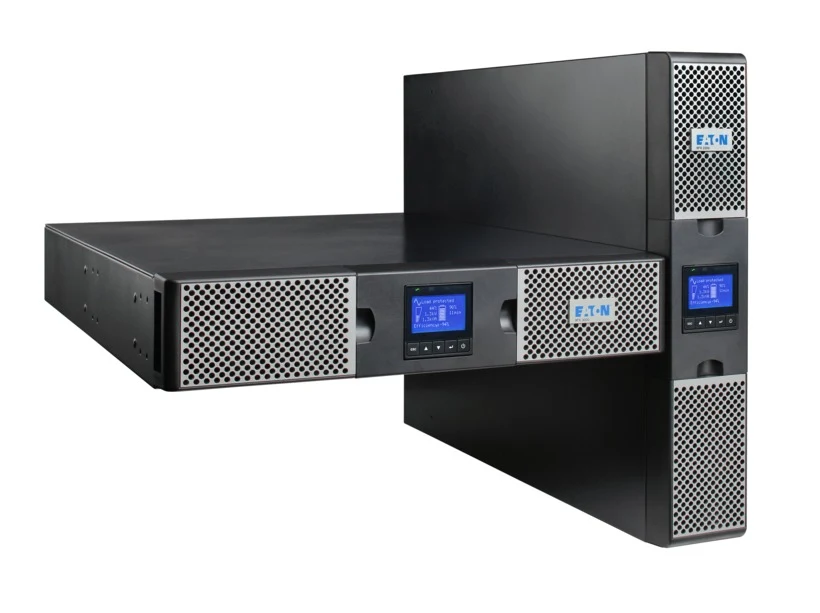

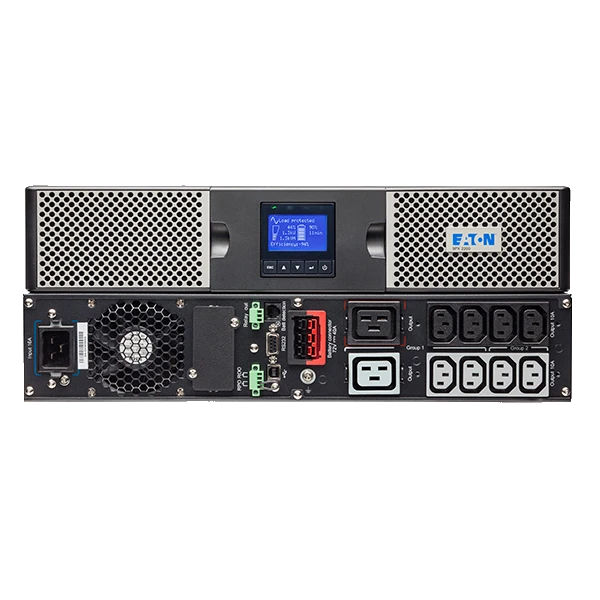

Eaton Make 1 KVA Rack Mountable On-Line UPS (Internal Batteries) – Features & Specifications
Product Overview
| Category | Specification |
|---|---|
| Model | 9PX1000IRT2U |
| Capacity | 1 kVA (1000 VA) / 1 kW (1000 W) |
| Type | Rack Mountable Online UPS with Internal Batteries |
| Form Factor | 2U Rackmount or Tower |
| Warranty | 3 years on electronics |
Technical Specifications
| Parameter | Details |
|---|---|
| Topology | True on-line double conversion with Power Factor Correction (PFC) system |
| Output Waveform | Pure sine wave |
| Input Phase | Single phase |
| Output Phase | Single phase |
| Input Voltage (Nominal) | 200/208/220/230/240 VAC |
| Input Voltage Range | 176–276 VAC (without derating), 100–276 VAC (with derating) |
| Input Frequency Range | 40–70 Hz, 50/60 Hz auto-selection, frequency converter mode |
| Input Power Factor | >0.99 |
| Output Voltage | 200/208/220/230/240 VAC (configurable) |
| Output Power Factor | 1.0 (Unity power factor) |
| Output Frequency (Synchronized) | 40–70 Hz |
| Output Frequency (Battery Mode) | 50 Hz or 60 Hz ±0.1 Hz |
| Current Crest Ratio | 3:1 |
| Total Harmonic Distortion (THD) | <5% (Linear Load), <5% (Non-linear Load) |
| Transfer Time (To Battery Mode) | Zero (true online operation) |
| Efficiency | Up to 91.5% (online mode), up to 97.5% (Hi-efficiency mode) |
Battery System
| Parameter | Details |
|---|---|
| DC Bus Voltage | 48 V DC |
| Number of Batteries | 4 batteries (12V each) |
| Battery Type | Sealed Lead-Acid (SLA) or VRLA (Valve-Regulated Lead-Acid) |
| Battery Configuration | Internal battery pack (batteries included) |
| Charging Current | Adjustable (up to 4A maximum) |
| Recharge Time | ~4 hours to 90% capacity |
| Runtime | Typically 7–10 minutes at full load (1000 W) |
| Hot-swappable Batteries | Yes (allows replacement without shutting down) |
Physical Specifications
| Attribute | Value |
|---|---|
| Dimensions (H × W × D) | 86 mm × 442 mm × 485 mm (2U rackmount) |
| Weight | 9.6 kg (21.2 lbs) |
| Color | Black |
| Form Factor | 2U Rackmount or Tower (convertible) |
Key Features
| Feature | Description |
|---|---|
| True On-Line Double Conversion | Continuous power conditioning with zero transfer time |
| Unity Power Factor (1.0) | Delivers 11% more power than standard 0.9 power factor UPS systems |
| Pure Sine Wave Output | Clean, stable power for sensitive electronic equipment |
| Power Factor Correction (PFC) | High input power factor (>0.99) reduces harmonic distortion and electrical stress |
| Wide Input Voltage Range | 176–276 VAC acceptance for operation in poor grid conditions |
| Wide Input Frequency Range | 40–70 Hz for seamless generator compatibility |
| Hi-Efficiency Mode | Up to 97.5% efficiency reduces operating costs and heat generation |
| Generator Compatible | Designed to work reliably with diesel generators |
| Automatic Voltage Regulation (AVR) | Protects from power sags and surges without using battery power |
| Rack/Tower Convertible | Flexible installation options for different environments |
| Graphical LCD Display | User-friendly interface for status updates, diagnostics, and configuration |
| Hot-Swappable Batteries | Allows battery replacement without interrupting power to connected loads |
| Frequency Converter Mode | Converts input frequency to output frequency (CVCF mode) |
| Adjustable Charging Current | Configurable charging current for battery flexibility |
| Conformal Coated Boards | Enhanced protection for operation in harsh environments |
| Inbuilt Over-voltage Cut-off Device | Protects against excessive input voltage |
| Inbuilt Over Temperature Protection | Prevents damage from overheating |
Protection Features
| Protection Type | Details |
|---|---|
| Overload Protection | Automatic transfer to bypass mode during sustained overloads |
| Short Circuit Protection | Immediate fault isolation to protect connected equipment |
| Battery Protection | Deep discharge and overcharge protection to extend battery life |
| Low Battery Alarm | Audio/visual warning when battery is critically low |
| Surge Protection | Built-in protection against voltage spikes and transients |
| Thermal Protection | Over-temperature monitoring and shutdown to prevent damage |
| Electromagnetic Compatibility | Compliant with IEC 61000-4-2/3/4/5 standards |
Display & Indicators (LCD)
| Indicator | Function |
|---|---|
| Load Level | Shows current load percentage on the UPS |
| Battery Level | Displays remaining battery capacity |
| AC Mode | Indicates normal utility power operation |
| Battery Mode | Shows operation on battery backup |
| Bypass Mode | Indicates UPS is in bypass operation |
| Fault Indicators | Alerts to error or fault conditions |
Alarm System
| Alarm Type | Pattern |
|---|---|
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
Management & Communication
| Feature | Details |
|---|---|
| Standard Interface | RS-232, USB for monitoring and management |
| Optional SNMP Card | Available for network management and remote monitoring |
| Optional Dry Contact Card | Available for AS400 systems |
| Optional Modbus Card | Available for industrial communication |
| Operating System Support | Windows, Linux, Unix, MAC |
| Remote Management | Power management via SNMP manager and web browser (with optional card) |
Environmental Specifications
| Parameter | Value |
|---|---|
| Operating Temperature | 0–40°C |
| Operating Humidity | 0–95% RH (non-condensing) |
| Noise Level | <50 dBA @ 1 meter |
| Installation Environment | Rack or tower installation in data centers, server rooms, or office environments |
Applications
| Use Case | Suitability |
|---|---|
| IT & Networking | Servers, network switches, routers, workstations |
| Data Centers | Server racks, network closets, wiring closets |
| Enterprise Computing | Enterprise servers, remote branches |
| Virtualization | Virtualized environments requiring high power factor |
| Industrial Control | Factory automation, process control systems |
| Medical | Medical workstations, diagnostic equipment |
| Commercial | Point-of-sale systems, retail computing, office networks |
