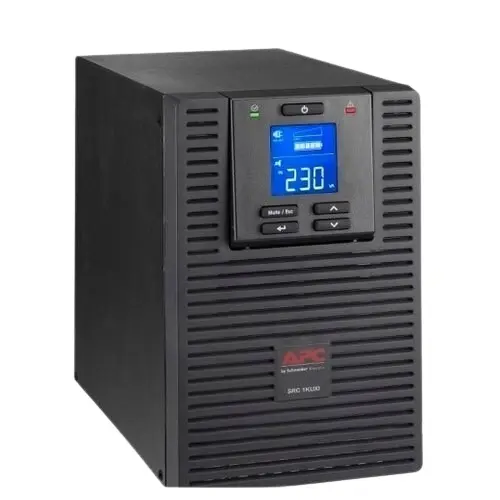

APC by Schneider Electric 1 KVA On-Line UPS – 1:1 Phase (Make in India)
| Category | Features & Specifications |
|---|---|
| Model Name | APC by Schneider Electric 1 KVA On-Line UPS – 1:1 Phase |
| Manufacture | Make in India |
| UPS Topology | True Double Conversion Online (VFI) |
| Capacity | 1 KVA / 800 W (Power Factor 0.8) |
| Input Phase | Single Phase (1:1 Phase – Input/Output) |
| Input Voltage Range | 160V – 280V AC (Typical, with AVR) |
| Input Frequency | 50 / 60 Hz ± 5 Hz (Auto Sensing) |
| Output Voltage | 230V AC ±1% |
| Output Frequency | 50 / 60 Hz (Synchronized with Input) |
| Output Waveform | Pure Sine Wave |
| Transfer Time | 0 ms (No Break – Continuous Online Operation) |
| Voltage Regulation | ±1% (Online Mode) |
| Efficiency | Up to 90% (Online Mode) |
| Battery Type | Sealed Maintenance-Free (VRLA), Hot-Swappable |
| Battery Recharge Time | 4–6 Hours to 90% Capacity |
| External Battery Support | Yes (Optional External Battery Pack) |
| Backup Time (Approx.) | 10–20 Minutes (at Full Load, Model Dependent) |
| Display Type | LCD / LED Display for Input, Output, Load, Battery Status |
| Audible Alarms | Mains Failure, Low Battery, Overload, Fault |
| Communication Ports | USB & RS-232 (Optional SNMP/Network Card) |
| Protections | Overload, Short Circuit, Surge, Deep Discharge, Over Temperature |
| Mounting Type | Rack Mountable / Tower Convertible |
| Operating Temperature | 0°C – 40°C |
| Humidity | 0–95% RH (Non-Condensing) |
| Compliance | BIS / CE / RoHS Certified (Model Dependent) |
| Color & Design | Black Industrial Finish, Compact Design |
| Warranty | 2 Years on UPS (1 Year on Battery, may vary by region) |
| Typical Applications | Servers, Networking Devices, POS Systems, Telecom, Medical & Office Equipment |
